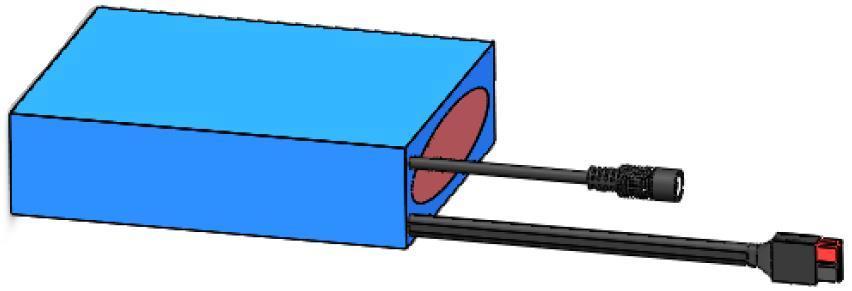

14.4V 13.2Ah custom NCM lithium battery pack with approximately 190.08Wh nominal energy in an 18NC-4S6P configuration. The PVC-wrapped pack measures 153 ± 2 × 115 ± 2 × 42 ± 2 mm and uses a DC 5.5 × 2.1 charging connector and a 30A Anderson discharge plug. Specified discharge current is up to 6.6A; 6.6–25A is limited to no more than 5 minutes.
This custom NCM lithium-ion pack delivers approximately 190.08Wh in an 18NC-4S6P configuration. Its PVC-wrapped body measures 153 ± 2 × 115 ± 2 × 42 ± 2 mm and weighs 1.2 ± 0.1 kg. It has separate DC charging and Anderson discharge leads.
| Parameter | Specification |
|---|---|
| Battery chemistry | Rechargeable NCM lithium-ion |
| Model | JG-4INR14.4-13.2-Y |
| Specification number | S2.0119-N1-0406-30-001 |
| Nominal voltage | 14.4V |
| Rated / minimum capacity | 13.2Ah / 12.7Ah (C5) |
| Nominal energy | Approx. 190.08Wh |
| Cell configuration | 18NC-4S6P |
| AC internal resistance | ≤100mΩ |
| Dimensions, excluding leads and connectors | 153 ± 2 × 115 ± 2 × 42 ± 2 mm |
| Weight / wrapping | 1.2 ± 0.1 kg / PVC |
| Charging voltage | 16.7–16.8V |
| Maximum charging current | 4A |
| Charge cut-off current | 132–264mA |
| Specified discharge current | ≤6.6A |
| Time-limited discharge range | 6.6–25A for no more than 5 minutes |
| End-of-discharge voltage | Approx. 11.2V |
| Protection circuit | Overcharge, over-discharge and temperature protection; cell balancing |
| Charging connector / lead | DC 5.5 × 2.1 / 100 ± 10 mm |
| Discharge connector / lead | 30A Anderson plug, 12AWG, red positive / black negative / 500 ± 10 mm |
| Charging temperature | 5°C to 45°C |
| Discharging temperature | −20°C to 55°C |
| Charge retention | ≥80% after 28 days under specified test conditions |
| Cycle life | ≥1,000 cycles with ≥70% capacity retention under specified test conditions |
Dimensions exclude outgoing wires and connectors. Cycle-life and retention figures are measured under the manual’s specified conditions; actual results depend on load, temperature, charging and system design.
Match the pack to the equipment voltage range, continuous load, peak current duration, enclosure space and connector polarity. Use a charger meeting the specified voltage and current limits. The time-limited 25A figure is not a continuous output rating. Avoid short circuits, water, fire, mechanical damage and series or parallel connection of finished packs.
No. The specification states discharge current up to 6.6A and allows 6.6–25A for no more than 5 minutes. Confirm the full load profile before integration.
A DC 5.5 × 2.1 connector on a 100 ± 10 mm charging lead and a 30A Anderson plug on a 500 ± 10 mm, 12AWG discharge lead.
Provide the voltage range, continuous and peak current, peak duration, runtime target, available dimensions, charging method and connector requirements. Requested changes require technical review and an agreed specification.
Contact Surlon Power and reference model JG-4INR14.4-13.2-Y or specification S2.0119-N1-0406-30-001.
