The ESS 16S 100A smart BMS is the battery management board for 48V lithium pack builds — the protection layer inside a 48 V-class pack made from 16 LiFePO4 cells in series. It sits between the cells and the equipment, watching cell voltage, pack current and temperature, and opening the main circuit when any of them leaves its safe window. That covers most of what a 51.2 V nominal pack needs in service: charge cut-off at the top of the voltage curve, discharge cut-off at the bottom, a current limit for overloads, and a fast trip when the output is shorted.
Boards of this shape are bought by pack builders rather than by end users, and they run for years instead of a single season. Home and commercial energy storage, telecom and UPS backup strings, 48 V traction and industrial equipment all use the same 16-cell format, and every one of them needs protection that stays predictable after thousands of standby days and charge cycles.
What this model gives you is a fully published protection set rather than a headline current rating. Detection and release voltages are stated for each cell, delays are stated for each protection, both the charge and discharge current trip points are listed, and the short-circuit response is quoted in microseconds. Because everything is set per cell, the same board suits any pack that uses 16 LiFePO4 cells in series, whatever cell capacity sits behind it.
| Overcharge detection voltage (per cell) | 3.75 ± 0.025 V |
| Overcharge detection delay | 0.5–1.5 s |
| Overcharge release voltage (per cell) | 3.5 ± 0.05 V |
| Over-discharge detection voltage (per cell) | 2.5 ± 0.05 V |
| Over-discharge detection delay | 500–1500 ms |
| Over-discharge release voltage (per cell) | 2.8 ± 0.1 V |
| Over-discharge current protection | 100 ± 10 A |
| Over-discharge current detection delay 1 | 500–1500 ms |
| Over-discharge current detection delay 2 | 500–1500 ms |
| Overcharge current protection | 80 ± 10 A |
| Overcharge current detection delay | 500–1500 ms |
| Short-circuit protection current | ≈1000 A |
| Short-circuit detection delay | 50–800 µs |
| Main circuit on-state resistance | ≤5 mΩ |
The main circuit switches electronically. There is no coil to hold in, no contactor to wear out and nothing mechanical to chatter under vibration, which counts for a lot in traction packs and equipment that is moved between sites. The trade-off is that the switch is only as good as its control wiring: the sense wiring has to be seated and the main terminals made off correctly, or the board will not pass current.
Two support functions change how a pack behaves in the field. Reverse polarity protection covers the moment during assembly or service when a charger or a load is connected the wrong way round. Break-circuit protection turns the board off on both charge and discharge when the voltage sampling circuit is disconnected, so a loose sense wire fails safe instead of letting one cell drift out of its window while the pack keeps working. Together they are what separates this board from a fuse or a breaker: it reacts to the cells, not only to the cable.
The listing also records no time-limited maximum discharge current, and the row is marked "none". Treat the current class as the working figure and size the pack's continuous load to it rather than counting on a short-duration peak rating that is not published. If your equipment has a genuine inrush or motor-start profile, send it to us and we will review it against the board's detection delays.
Sizing starts with the load, not with the label. The over-discharge protection on this model trips at 100 ± 10 A, so the pack's working current should sit comfortably below that figure, with room for normal equipment variation and for a warm enclosure. The two detection delays sit in the 500–1500 ms range for the opposite case: a short inrush or a motor start that is not a fault. The board waits before it acts, which stops a legitimate surge from shutting the pack down, and still trips if the current stays high.
The realistic fit is a pack whose continuous draw stays in the tens of amps with occasional excursions into the high tens — a domestic storage inverter, a small traction pack, a backup string with a moderate load. If the inverter or the motor can sit above the board's window for seconds at a time, the honest answer is a higher current class rather than a longer delay.
Ambient temperature belongs in the calculation too. A board mounted in a sealed enclosure beside the cells sees the same heat they do, and every threshold in the specification is stated at the board, not at the outside air. Because we build these boards as a BMS module manufacturer, a change request goes to the same engineering team that sets the thresholds, so tell us the load profile and the enclosure and we will confirm the fit before you commit to a build.
Choosing a battery management board for 48V lithium pack builds starts with chemistry and cell count. The detection voltages in the specification — 3.75 V at the top and 2.5 V at the bottom of each cell — describe a LiFePO4 window, so the board belongs on a 16-cell LiFePO4 string. A 15-cell string, a 13S NCM pack or an LTO pack needs a different board or a reviewed configuration; do not stretch the cell count to make a board fit.
Then the charger. Check the charge voltage the charger applies across the whole string against the per-cell ceiling the board protects at, including any float or equalisation stage it runs. A charger set up for a lead-acid string may hold a voltage the board reads as an overcharge fault, and that will look like a board failure when it is a charger mismatch.
Mechanical and thermal questions come next: the sense wiring connector and lead length, the space around the board inside the enclosure, and the ambient temperature the pack will actually see. If your design includes cell balancing, a communication bus or a particular connector set, say so at the inquiry stage — the published specification for this model covers protection and switching, and those other functions are confirmed per configuration.
The ESS series covers more than one current class. If your pack's working current sits above what this board protects, the same series includes the Surlon Power | ESS 16S200A BMS for higher-current strings; the 16-cell format and the style of protection are shared, and the difference is the current the main circuit is built to carry. The Surlon Power | 4S150A BMS covers a four-cell, 12 V-class string at a higher current, with the 4S100A board for the same format at a lower rating.
Not every project needs a bare board. If you are buying complete packs instead of protection hardware, the Surlon Power LFP | SLA Replacement batteries, 12.8V100Ah pack is the four-cell equivalent in finished form, and the pack range follows the same approach of stating limits up front rather than leaving them to the fine print. Builders who need both can order boards and packs from one supplier and keep protection settings and pack drawings consistent.
Whichever route you take, ask for the current revision of the model you are comparing. Boards in a series look alike on a bench, and the difference that matters is the one printed on the drawing.

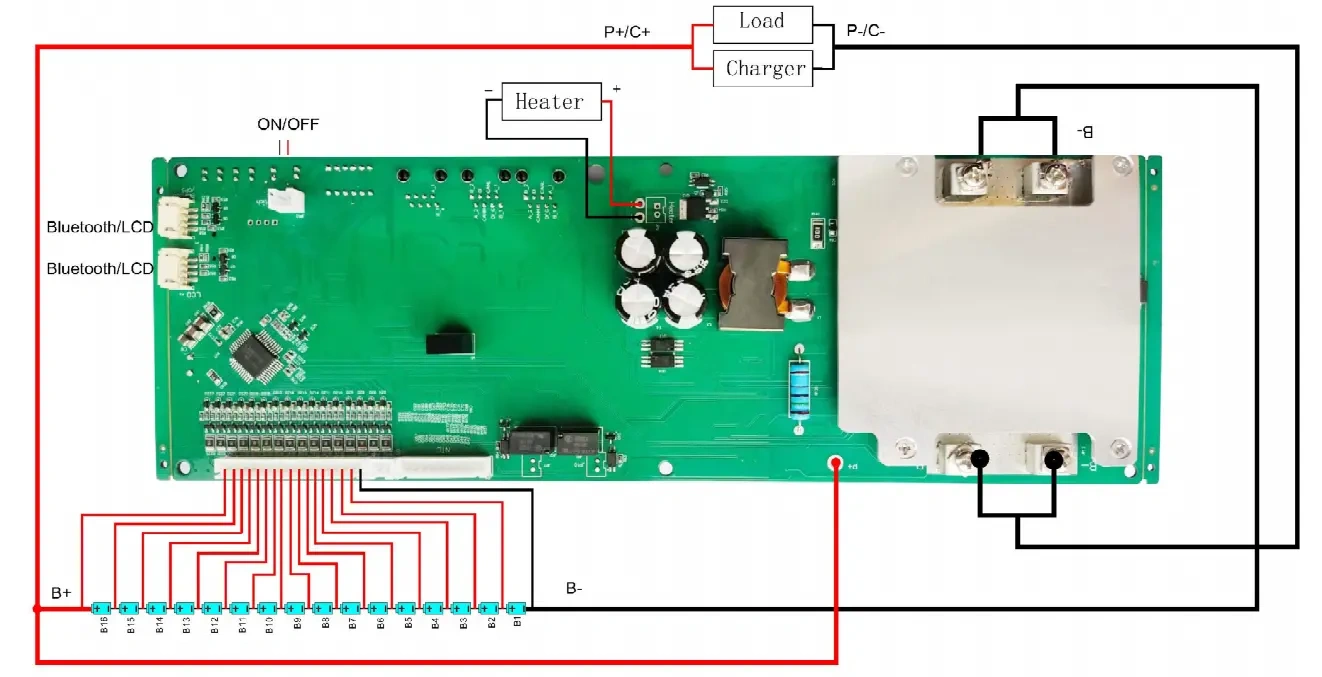

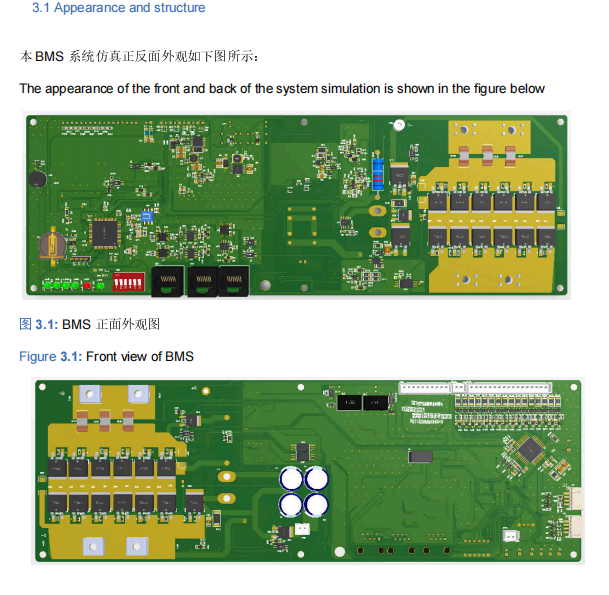

Everything the 16S 100A smart BMS is specified to do happens on the power path. It reads all 16 cell channels, holds the charge and discharge cut-offs at the published per-cell voltages, opens the main circuit on over-current or a short, and takes temperature from an NTC thermistor bonded to the cells. Reverse-polarity protection and the sampling-circuit break function sit alongside that, and the main circuit is specified at ≤5 mΩ on-state resistance, so the board does not burn the energy it is there to protect. Electronic switching means there is no contactor to hold in and nothing mechanical to wear out under vibration.
Cell balancing is not part of that published set. If your pack design expects the board to hold the cells level over years of cycling, raise it at the inquiry stage: a board without balancing depends on cells that were matched and batch-selected during assembly, and a pack whose channels drift apart needs a different board rather than a longer absorption stage from the charger. Saying so before the drawing is frozen is far cheaper than finding it out after the first field return.
Communication is the other assumption worth clearing early. This model carries no bus, Bluetooth link or parallel-charging protocol in its published specification, so an inverter, a host controller or a monitoring gateway should not be planned around talking to it. The range does cover data functions where a project needs them — the Surlon Power 4S100A board for 12 V packs is described with a Bluetooth module, parallel charging and a link to the vehicle — and the same review applies when you ask for a 16-cell board with balancing or communications: we confirm the functions against your pack drawing instead of assuming they travel with the model name.
That distinction decides wiring, cost and what your service team can see in the field. A board that switches, senses temperature and fails safe on a broken sense wire does the quiet work that keeps a 48 V string alive; a board that also reports cell data to a host is a different unit with a different connector count and a different price. Decide which one the pack actually needs before comparing quotations — and if the answer is both, send the requirement together with cell count, chemistry and current profile, and we will quote the configuration that carries both, with balancing and communication written into the drawing.
One check at first power-up pays for itself: log the spread between cell channels on the bench, then again after the pack has been in service for a few months. A non-balancing board shows drift as a slowly widening spread, and catching it before it reaches the discharge cut-off is the difference between a service visit and a replacement pack.
Technical questions reach the people who build the packs. Our engineering group in Shenzhen reviews your device's voltage window, load profile, enclosure space and charger before proposing a configuration; our sample group then builds units so you can validate fit and runtime before production. Cell selection, BMS design and pack assembly stay in-house, with quality checks in process and at final inspection, and a documentation team handling certificates, test reports and shipping papers. When a unit behaves unexpectedly in the field, our engineers help trace the fault and advise on installation and commissioning.
Packs built from 16 LiFePO4 cells in series, which is the usual 48 V-class shape at 51.2 V nominal. Cell capacity, pack geometry and the number of parallel strings can change; the cell count and the chemistry cannot, because every threshold on the board is written per cell.
The output is cut and stays cut while the fault remains. A short circuit is recognised only when the fault is external to the board, and once the load is removed the board recovers automatically — no fuse to replace and no manual reset. Current and voltage faults come back the same way once the cause is cleared, after their detection delays have run.
The published specification for this model covers voltage, current, temperature and short-circuit protection, plus electronic switching, reverse polarity and sampling-circuit break behaviour. Cell balancing is not part of that published set, so tell us how your pack is assembled and we will confirm exactly what the supplied board includes.
Only if its charge voltage and profile sit inside the window the board protects. It cuts charging when any cell reaches its detection voltage, so a charger holding a higher string voltage will trip the pack again and again and look like a board fault. Send the charger's output voltage, current and charge stages with your inquiry and we will review the pair together.
Same 16-cell format and the same style of per-cell protection; the difference is how much current the main circuit is built to carry. Choose by your pack's working current rather than by the bigger number, because a board rated well above the load adds cost and size without improving protection. If your continuous draw or your peak profile keeps pressing at the 100 A window, step up to the higher class.
The main circuit is specified for low on-state resistance, so conduction loss stays modest at the board's working current. The heat that usually matters comes from the enclosure: cells and board share the same air, and a sealed box in a warm room lifts every temperature the board measures. Leave clearance and moving air where the design allows, and check the temperature rise on the first pack under real load.
The values in the specification are the published protection points for this model. If your design needs a different per-cell window, different delays or a different current class, send the requirement with your pack drawing — as a BMS module manufacturer we review those requests against your cell data before quoting, and we will say so plainly when the answer is a different board rather than a modified one.
