3.6V 2.2Ah custom NCM lithium battery pack with approximately 7.92Wh nominal energy in a compact 1S1P cylindrical format. The PVC-wrapped pack includes a JST-PHR-3P connector with positive, negative and NTC leads. Check the device load, charger and connector pinout against the specifications below before integration.

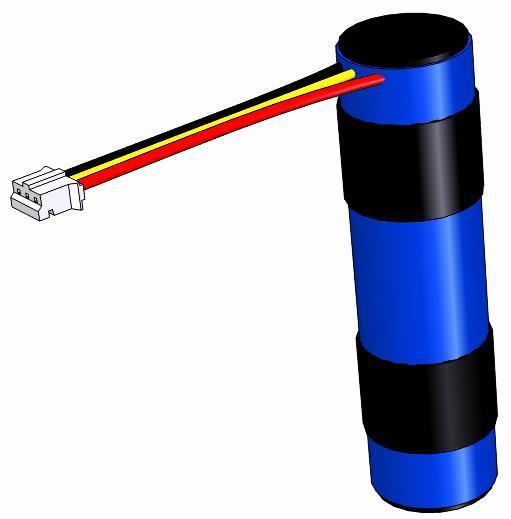

Model JG-1INR3.6-2.2-Y (specification S2.0700-N1-0101-05-004) provides approximately 7.92Wh nominal energy in an 18NC-1S1P configuration. The PVC-wrapped cylindrical body measures 70 (+0/-1) mm long by 19.5 (+0/-1) mm in diameter, excluding foam, leads and connector.
| Parameter | Specification |
|---|---|
| Battery chemistry | Rechargeable NCM lithium-ion |
| Model | JG-1INR3.6-2.2-Y |
| Specification number | S2.0700-N1-0101-05-004 |
| Nominal voltage | 3.6V |
| Rated / minimum capacity | 2.2Ah / 2.0Ah (C5) |
| Nominal energy | Approx. 7.92Wh |
| Cell configuration | 18NC-1S1P |
| AC internal resistance | ≤130mΩ |
| Dimensions | Length 70 (+0/-1) mm × diameter 19.5 (+0/-1) mm; excludes foam, leads and connector |
| Weight / wrapping | 50 ± 5g / PVC |
| Charging voltage | 4.18-4.20V |
| Recommended / maximum charging current | 0.44A / 1.1A |
| Charge cut-off current | 22-44mA |
| Specified / maximum continuous discharge current | ≤2.2A / 2.5A |
| End-of-discharge voltage | Approx. 2.8V |
| Protection | Overcharge and over-discharge |
| Connector / wire | JST-PHR-3P / 24AWG, 50 ± 5mm; red positive, black negative, yellow NTC |
| Charging / discharging temperature | 0°C to 60°C / -20°C to 65°C |
| Charge retention | ≥85% after 28 days under specified conditions |
| Cycle life | ≥1,000 cycles with ≥70% capacity retention under specified test conditions |
Evaluate this pack for compatible portable electronics, instruments and compact devices. Confirm the full operating voltage range, load profile, space, NTC interface and connector pinout. Use a compatible 4.18-4.20V lithium-ion charger and verify polarity before connection. The 2.5A continuous pack limit is distinct from any higher cell-only current rating.
The manual specifies 2.2Ah rated capacity and 2.0Ah minimum capacity at C5. Runtime depends on load, temperature and cut-off settings.
The yellow wire is the NTC temperature-sensing lead. Confirm its interface before integration.
The pack specification gives a maximum continuous discharge current of 2.5A. Do not substitute the separate cell rating for the assembled pack rating.
Contact Surlon Power and reference S2.0700-N1-0101-05-004 to discuss samples or a custom configuration.
