12.8V 165Ah LiFePO4 Golf Cart Battery
The GLFB6 12.8V 165Ah LiFePO4 battery is a high-capacity, maintenance-free replacement for compatible lead-acid golf cart battery systems. Delivering 2112Wh of reliable energy, it helps extend operating time while reducing maintenance and replacement costs. Its integrated BMS protects against over-temperature, over-voltage, over-discharge, and short circuits, while the IP65-rated enclosure supports dependable operation in demanding environments. Enjoy a 10-year design life, 5-year warranty, and no water refilling, acid cleanup, or routine terminal maintenance.
The Surlon Power GLFB6 is a high-capacity 12.8V 165Ah LiFePO4 battery designed to replace compatible 12V lead-acid and SLA battery systems. With 2,112Wh of stored energy, a compact ABS enclosure, and IP65 protection, it delivers reliable, maintenance-free power for golf cart battery banks, solar storage, backup power, marine equipment, and other demanding 12V applications.
Built with lithium iron phosphate technology and an integrated Battery Management System (BMS), the GLFB6 helps protect against overcharge, over-discharge, over-temperature, and short circuits. It eliminates routine lead-acid battery maintenance such as water refilling, terminal tightening, and acid-deposit cleaning.
High-Capacity 12V Power: 165Ah capacity and 2,112Wh energy storage for extended runtime.
Lead-Acid Replacement: Suitable for compatible 12V SLA and deep-cycle battery systems.
Long Cycle Life: More than 2,000 cycles at 0.2C and 100% depth of discharge.
Integrated BMS Protection: Helps support safe, stable operation in demanding applications.
IP65-Rated ABS Case: Provides protection against dust and water jets.
Maintenance-Free Design: No water refilling, acid cleanup, or routine terminal servicing.
Compact Installation: M8 terminals and a space-efficient enclosure support straightforward integration.
Long-Term Assurance: 10-year design life and 5-year warranty, subject to specified operating conditions.
The GLFB6 12.8V 165Ah lithium battery is suitable for compatible applications including:
12V battery modules for golf cart battery banks
Solar energy storage and off-grid power systems
UPS and emergency backup power
Marine and RV power systems
Telecom and security equipment
Industrial equipment and portable power systems

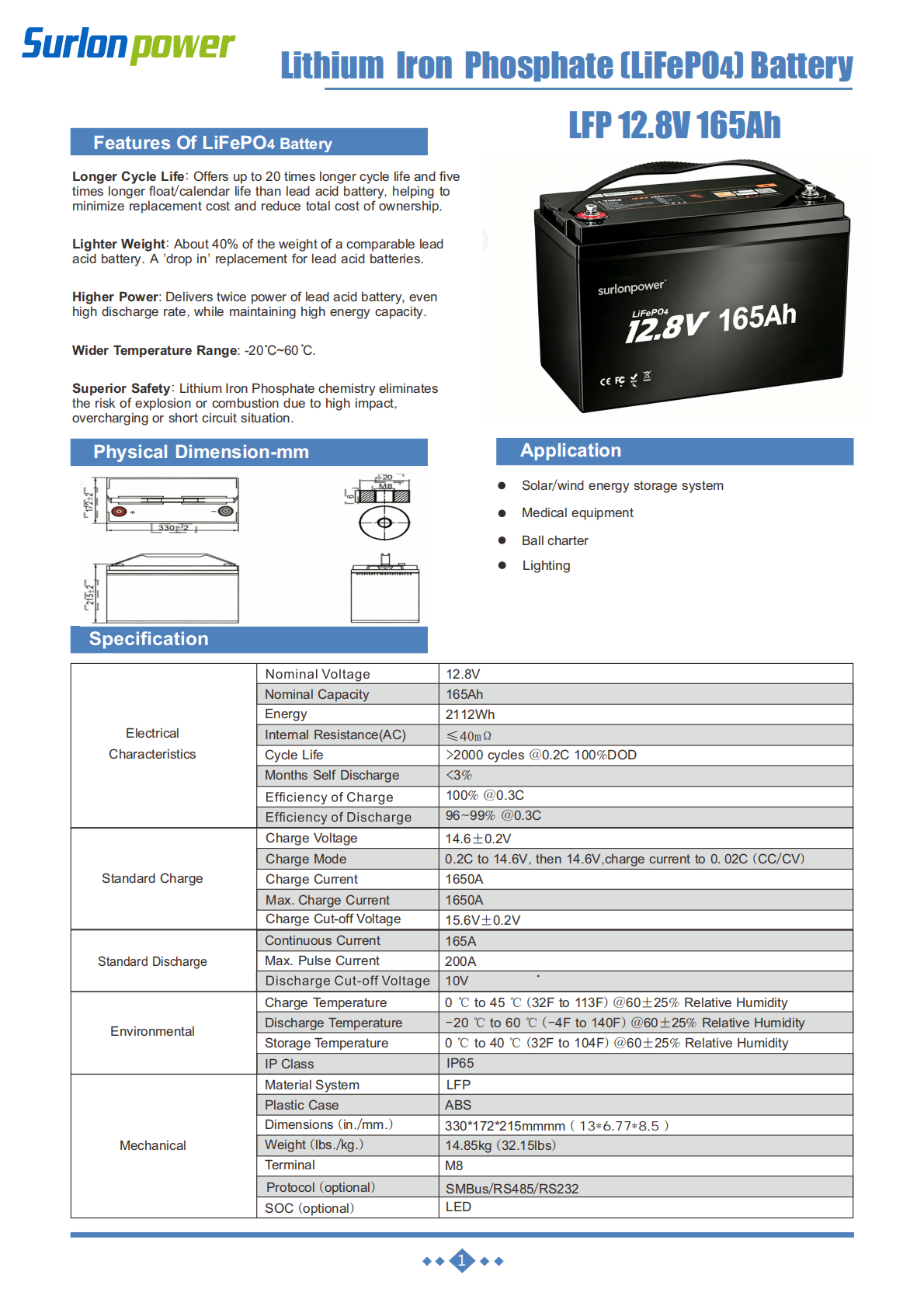

| Category | Specification | Details |
|---|---|---|
| Model | Product Model | GLFB6 |
| Electrical | Nominal Voltage | 12.8V |
| Electrical | Nominal Capacity | 165Ah |
| Electrical | Stored Energy | 2112Wh |
| Electrical | Internal Resistance (AC) | ≤40mΩ |
| Electrical | Cycle Life | >2,000 cycles @ 0.2C, 100% DOD |
| Electrical | Monthly Self-Discharge | <3% |
| Electrical | Charge Efficiency | 100% @ 0.3C |
| Electrical | Discharge Efficiency | 96–99% @ 0.3C |
| Charging | Charge Voltage | 14.4 ± 0.2V |
| Charging | Charge Mode | 0.2C to 14.6V, then 14.6V; current tapers to 0.02C (CC/CV) |
| Charging | Recommended Charge Current | 33A (0.2C) |
| Charging | Maximum Charge Current | 165A* |
| Charging | Charge Cut-off Voltage | 14.6V ± 0.2V |
| Discharging | Continuous Discharge Current | 150A |
| Discharging | Maximum Pulse Current | 200A (<3s) |
| Discharging | Discharge Cut-off Voltage | 10V |
| Environmental | Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Environmental | Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| Environmental | Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Protection | IP Rating | IP65 |
| Mechanical | Battery Chemistry | LiFePO4 (LFP) |
| Mechanical | Case Material | ABS |
| Mechanical | Dimensions (L × W × H) | 330 × 172 × 215 mm ±2 |
| Mechanical | Weight | 14.58 kg |
| Mechanical | Terminal | M8 |
| Optional Feature | State of Charge Indicator | LED |
*Maximum charge current must be verified against the final BMS and cell specification before publication.
Compared with conventional lead-acid batteries, LiFePO4 batteries offer longer cycle life, lower maintenance requirements, stable voltage output, and higher energy efficiency. The GLFB6 helps reduce battery servicing time and replacement frequency, supporting lower total operating costs over the battery’s service life.
For golf carts, this 12.8V battery should be used only in a properly designed series battery bank compatible with the vehicle’s required system voltage. Confirm dimensions, voltage configuration, charger compatibility, cable connections, and current requirements before installation.
Yes, it is designed for compatible 12V lead-acid or SLA battery systems. Always verify dimensions, terminal connections, charging profile, discharge-current requirements, and mounting space before purchase.
Yes, as part of a compatible multi-battery 12V series configuration. The final battery-bank voltage must match the golf cart’s electrical system.
The recommended charge current is 33A (0.2C). Use a LiFePO4-compatible charger that follows the specified 14.4V charging profile.
No water refilling or acid cleaning is required. Inspect cables, terminals, and charging equipment periodically to maintain reliable performance.
The battery is IP65-rated, meaning it is protected against dust and water jets. It must not be submerged in water.
Contact Surlon Power for technical support, OEM/ODM options, and a quotation for the GLFB6 12.8V 165Ah LiFePO4 battery.
