Functional Positioning for Industrial and Commercial Energy Storage

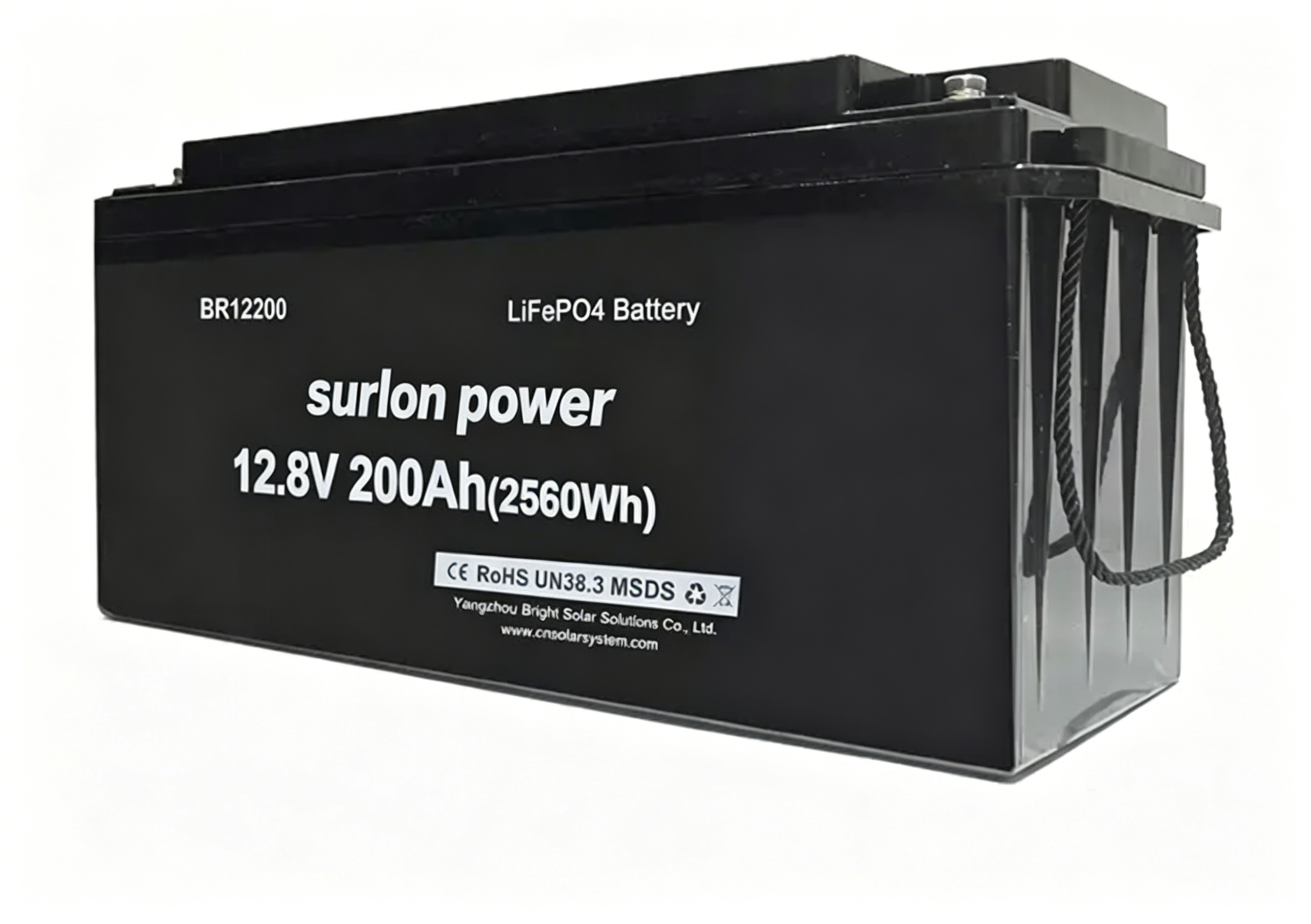

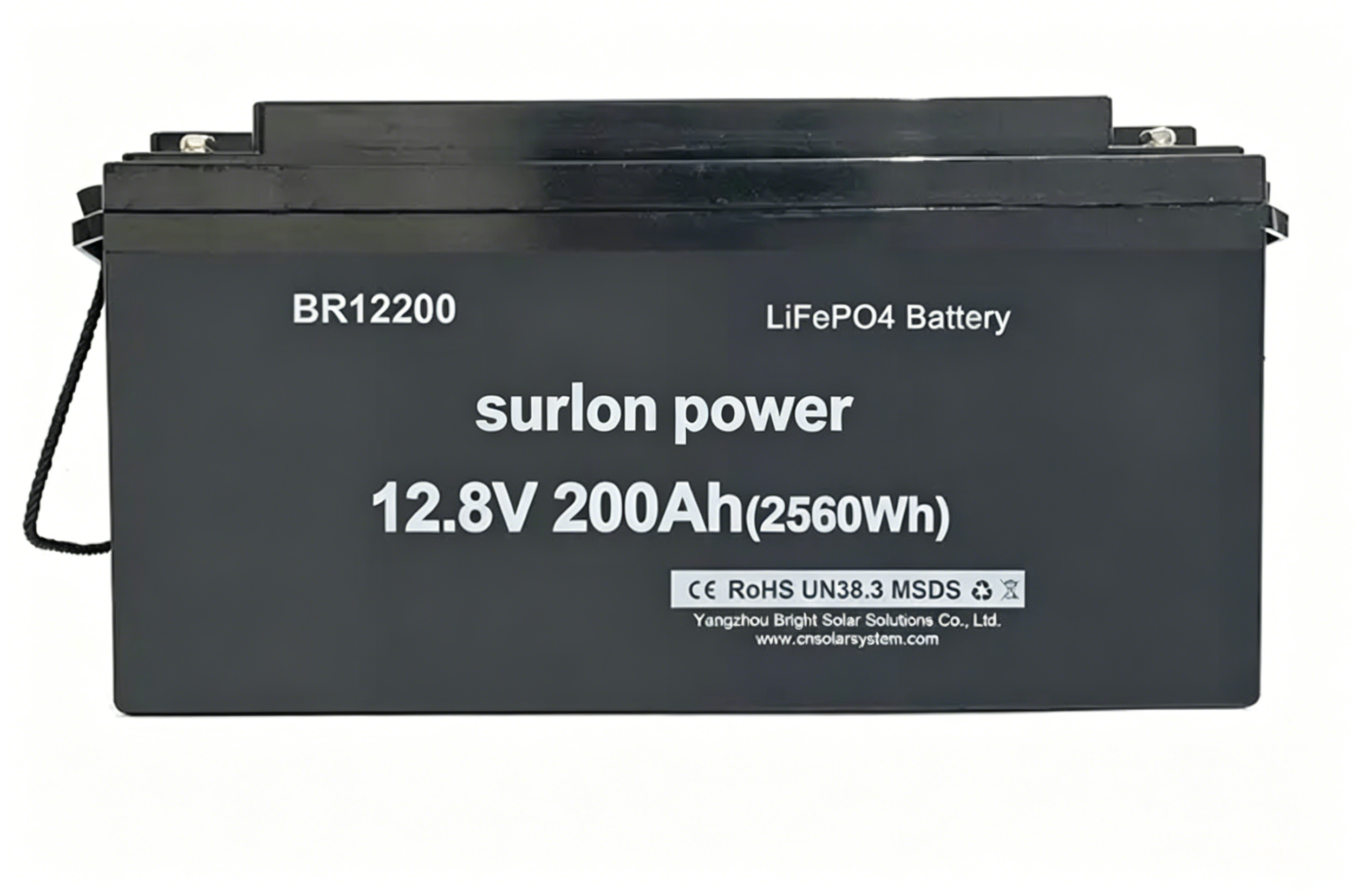

The Surlon Power LFP SLA Replacement Battery 12.8V 200Ah targets industrial and commercial sectors requiring a dependable and maintenance-free alternative to lead-acid SLA packs. Designed for seamless drop-in replacement, this lfp battery suits applications ranging from backup power systems to renewable microgrids. Customers such as system integrators, equipment manufacturers, and operators benefit from its robust design and ease of integration. As a product from a reputable lifepo4 battery manufacturer, it addresses the increasing demand for efficient and scalable energy storage solutions in complex power architectures.
Key Technical Features and Performance Specifications
Constructed with lithium iron phosphate chemistry, this battery provides a nominal voltage of 12.8V and a rated capacity of 200Ah, resulting in a substantial 2560Wh energy output. The pack achieves over 2,000 full-depth discharge cycles, reflecting exceptional durability relative to traditional SLA units. An IP65-rated enclosure guarantees resistance to dust and moisture, enhancing operational reliability in harsh environments. Fast charging capability up to 100A and continuous discharge current of 150A ensure operational flexibility. Communication protocols including SMBus, RS485, and RS232 facilitate real-time monitoring, confirming its status as a sophisticated battery pack manufacturer offering advanced control and safety features.
Industry Applications and Systems Integration Value
This lifepo4 battery is engineered for applications such as solar energy storage, UPS backup, electric vehicles, and marine power systems, where sustained power delivery and long service life are critical. Its compatibility with renewable systems supports efforts for carbon footprint reduction and energy sustainability. In telecom or industrial power backup scenarios, it ensures continuous operation during outages, minimizing downtime. The battery’s lightweight, compact form factor enhances transportability and installation ease. As a product from a leading lithium ion battery manufacturer, it supports growing demands in evolving sectors, demonstrating versatility and long-term cost effectiveness in various energy storage frameworks.

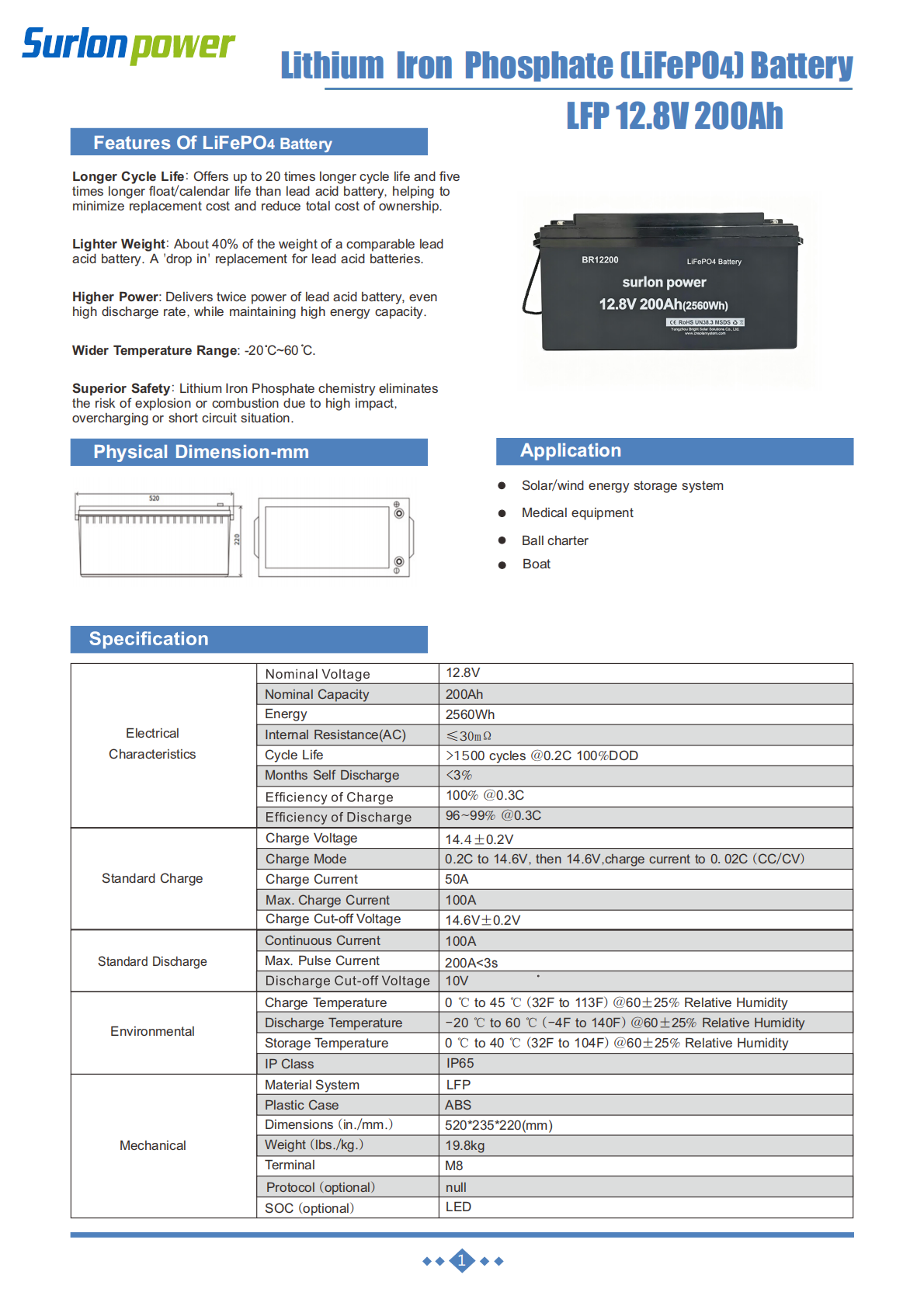

| Specification | |
|---|---|
| Electrical Characteristics | Details |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2560Wh |
| Internal Resistance (AC) | ≤20mΩ |
| Cycle Life | >2000 cycles @ 0.2C 100%DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @ 0.3C |
| Efficiency of Discharge | 96~99% @ 0.3C |
| Standard Charge | Details |
| Charge Voltage | 28.8 ± 0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C (CC/CV) |
| Charge Current | 50A |
| Max. Charge Current | 100A |
| Charge Cut-off Voltage | 29.2V ± 0.2V |
| Standard Discharge | Details |
| Continuous Current | 150A |
| Max. Pulse Current | 200A (<3s) |
| Discharge Cut-off Voltage | 20V |
| Environmental | Details |
| Charge Temperature | 0℃ to 45℃ (32°F to 113°F) @ 60 ± 25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4°F to 140°F) @ 60 ± 25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32°F to 104°F) @ 60 ± 25% Relative Humidity |
| IP Class | IP65 |
| Mechanical | Details |
| Material System | LFP |
| Plastic Case | ABS |
| Dimensions (in./mm.) | 520*235*220mm |
| Weight (lbs./kg.) | 19.8kg |
| Terminal | M8 |
| Protocol (optional) | null |
| SOC (optional) | LED |
High Energy Density: Offers a substantial energy capacity of 2560Wh, surpassing traditional SLA batteries.
Extended Cycle Life: Capable of over 2000 cycles at 100% Depth of Discharge (DoD), providing long-lasting performance.
Rapid Charging: Supports a maximum charge current of 100A, significantly reducing charging times.
Lightweight and Compact: Weighs only 19.8kg, making it easier to handle and install compared to SLA batteries.
Superior Efficiency: Boasts high-efficiency rates of 100% charge and 96-99% discharge at 0.3C, ensuring optimal energy utilization.
Enhanced Safety: Includes advanced safety features such as overcharge, over-discharge, and short-circuit protection.
Wide Operating Temperature Range: Operates effectively within a broad temperature range, from -20℃ to 60℃, suitable for various environments.
Durable Construction: Encased in a robust ABS plastic case with an IP65 rating, ensuring resistance to dust and water ingress.
Versatile Applications: Ideal for renewable energy systems, electric vehicles, and backup power systems.
Easy Integration: Equipped with M8 terminals and optional LED state-of-charge (SOC) indicators for convenient monitoring.
Product Advantages
Design and Structural Superiority
The Surlon Power 12.8V 200Ah battery incorporates a sophisticated modular design enabling straightforward replacement of SLA packs without major system adaptations. Its IP65-grade housing ensures long-term protection against environmental hazards such as dust and water ingress. Incorporating multi-level protective circuitry, including overcharge, over-discharge, and short-circuit safeguards, this pack reflects the expertise of a premier lfp battery manufacturer committed to system safety. Communication interfaces (SMBus, RS485, RS232) are integrated for seamless supervisory control, making it highly compatible with modern energy management systems. This design rigor positions it as a highly adaptable and efficient battery pack manufacturer offering.
Enhanced Performance Offering and User Benefits
Beyond structural integrity, this 200ah lithium battery excels in performance metrics, providing rapid recharge capabilities (up to 100A) and high discharge rates for peak load demands. The extended cycle life exceeds 2,000 cycles at full depth of discharge, significantly reducing maintenance costs and replacement frequency for end-users. Its temperature-operating range (-20°C to 60°C discharge) suits diverse climates, enhancing operational reliability. By eliminating water refilling and reducing weight compared to SLA batteries, it simplifies installation and lowers lifecycle costs. This solution from a distinguished lithium battery manufacturer delivers practical value through improved efficiency, safety, and lifecycle economics.
Use Scenarios
Energy Storage for Home Solar and Backup Applications
In residential solar energy systems, the Surlon Power 12.8V 200Ah functions as a reliable energy reservoir, providing uninterrupted power during grid outages and peak demand periods. Its compatibility with renewable energy storage solutions enables direct integration with solar inverters and energy management units. The IP65-rated enclosure ensures durability in outdoor installations, while fast charge and discharge capability permits efficient energy cycling daily. Homeowners and system integrators benefit from a low-maintenance and stable power source, with real-time monitoring enabled via standard communication protocols. This lifepo4 battery enhances energy independence and system resiliency in domestic microgrid environments.
Deployment in Telecom and Small Facility Backup Systems
Within telecom infrastructure and small commercial facilities, this battery offers dependable UPS backup power, primed to maintain critical loads without interruption. Its ability to sustain continuous discharge currents of 150A supports surge and peak demands inherent in such operational contexts. The robust safety features and broad operating temperature range cater to diverse facility conditions, securing compliance with industrial standards. Integration with facility management systems is streamlined through SMBus, RS485, and RS232 interfaces, facilitating proactive battery health monitoring and lifecycle management. As a product from a recognized lfp battery manufacturer, it strengthens facility uptime and operational continuity.
Can I customize the lithium battery specifications for my application?
Yes, we offer tailored solutions as a leading lifepo4 battery manufacturer. We can adjust battery configurations, capacities, and communication protocols like SMBus, RS485, and RS232 to fit your exact energy storage requirements. Contact us to discuss your custom lithium ion battery needs.
How do I replace my existing SLA batteries with your LiFePO4 battery pack?
Our lfp battery is designed as a direct drop-in replacement for traditional SLA batteries. It matches the 12.8V and 200Ah rating while providing longer cycle life and reduced maintenance. With an IP65 enclosure, it is suitable for indoor or mild outdoor environments, ensuring straightforward integration.
What certifications and quality controls do your batteries hold?
Our products meet rigorous standards, including UL, CE, TUV, IEC62133, and others, supported by ISO9001 and ISO14001 management systems. We maintain strict quality assurance with systematic processes to ensure the highest safety and reliability in all energy storage solutions we provide.
What maintenance is required for the Surlon Power LFP battery?
Our 200ah lithium battery requires minimal maintenance due to its sealed LiFePO4 chemistry—no water refilling needed. Regular monitoring via SMBus or RS485 helps optimize performance, and the battery includes built-in protection against overcharge, over-discharge, and short circuits for safe, dependable operation.
