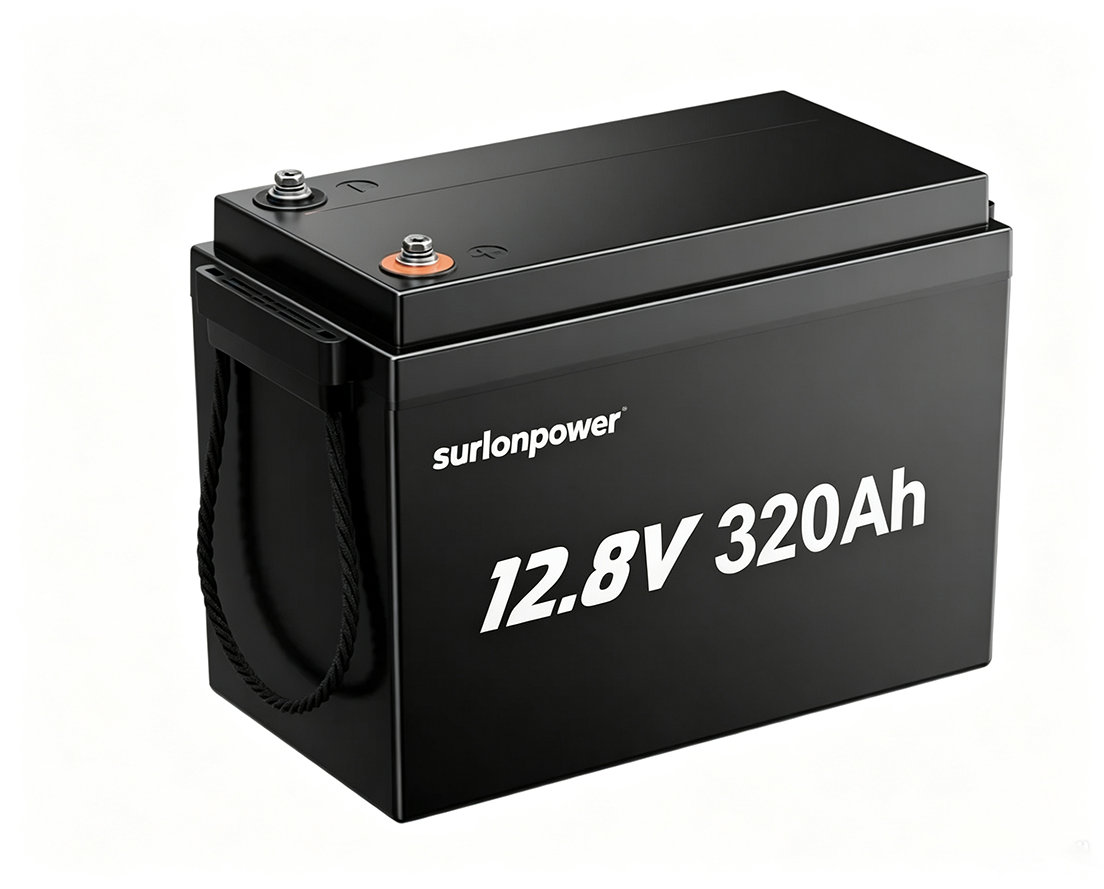

The Surlon Power QSTD10 is a 12.8V 320Ah LiFePO4 battery for compatible RV, marine, solar, and backup-power systems. It provides 4,096Wh of nominal stored energy, with a 200A BMS, Bluetooth monitoring, and integrated self-heating.
| Specification | Details |
|---|---|
| Model | QSTD10 |
| Battery chemistry | LiFePO4 |
| Nominal voltage | 12.8V |
| Rated capacity | 320Ah |
| Nominal stored energy | 4,096Wh (4.096kWh) |
| BMS rating | 200A |
| Maximum continuous charge / discharge current | 200A / 200A |
| Maximum continuous output power | 2,560W |
| Charging method | CC/CV |
| Charge voltage | 14.4V ± 0.2V |
| Recommended charge current | 64A |
| Bluetooth / Self-heating | Included |
| Housing / Protection rating | ABS / IP65 |
| Terminals | M8 × 16mm |
| Dimensions (L × W × H) | 14.49 × 7.44 × 10.04 in |
| Approximate weight | 57.3 lb |
For lead-acid replacement projects, confirm charger settings, current requirements, terminal layout, and installation space before selecting the battery.
Use a compatible LiFePO4 charger with a CC/CV profile. The recommended charging current is 64A, with a charge voltage of 14.4V ± 0.2V.
The battery includes self-heating and low-temperature protection. Follow the product manual for heater activation and charging conditions; low ambient-temperature operation depends on the battery reaching its permitted charging temperature. Heating time varies with starting temperature and installation conditions.
Series and parallel installations require compatible, correctly matched batteries. Confirm the permitted configuration, charger and inverter compatibility, cable sizing, fusing, and terminal polarity with Surlon Power before installation. Share any startup or surge-current requirements as part of the system review.
Send your application, load power, target runtime, available installation space, charging equipment, order quantity, and delivery market. Our team can review the configuration and provide pricing, applicable warranty terms, and available product documentation.
