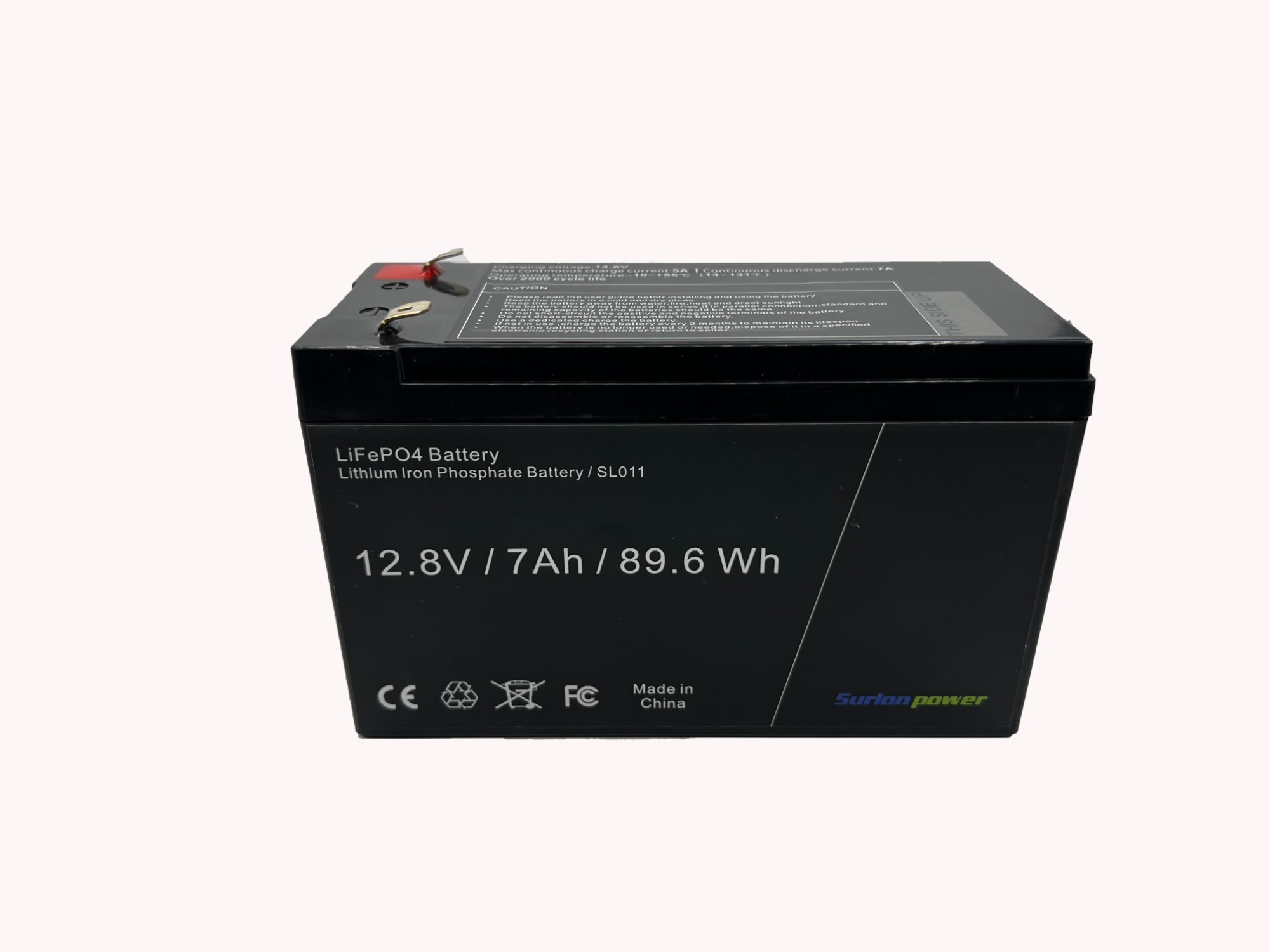

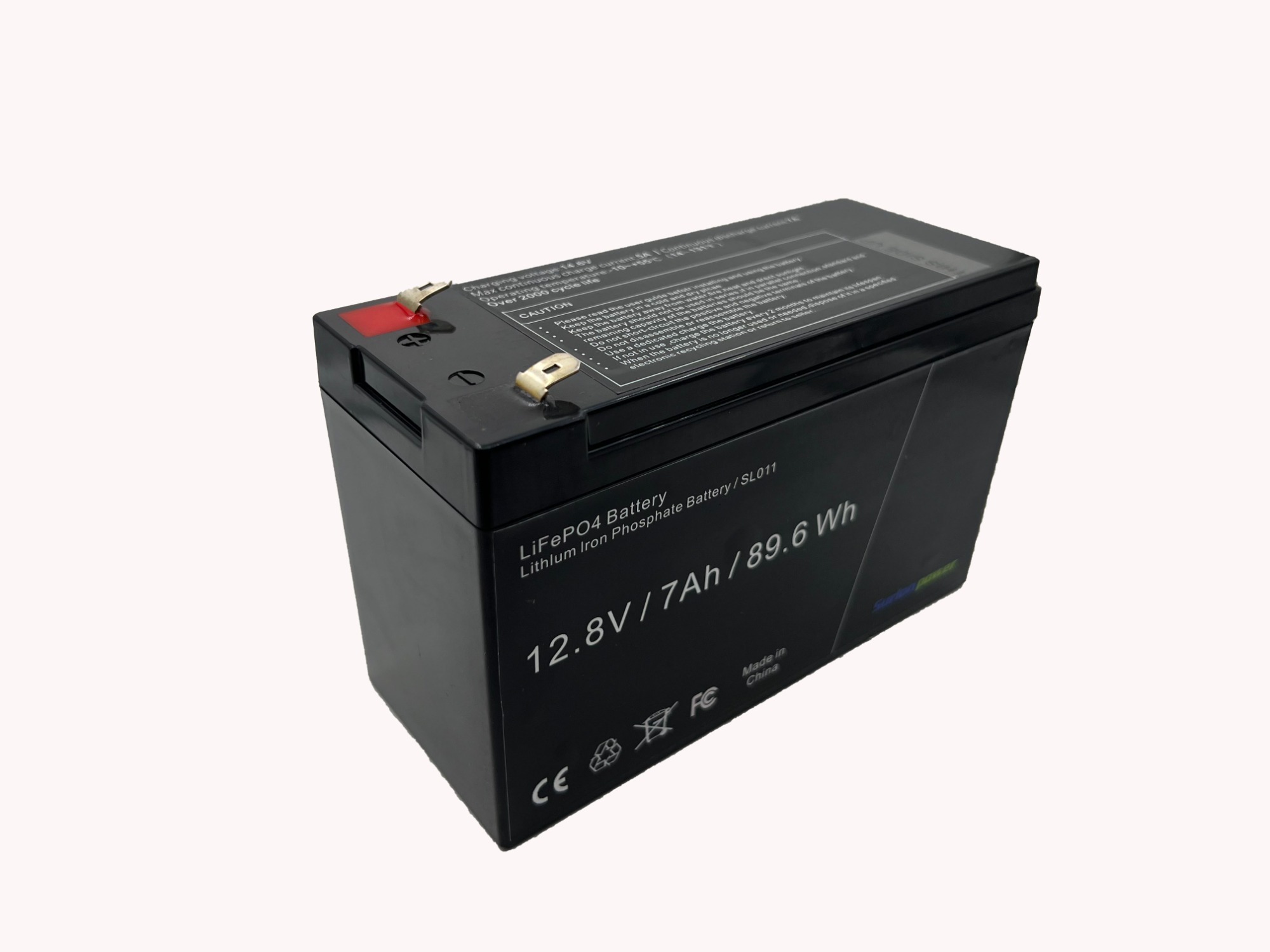

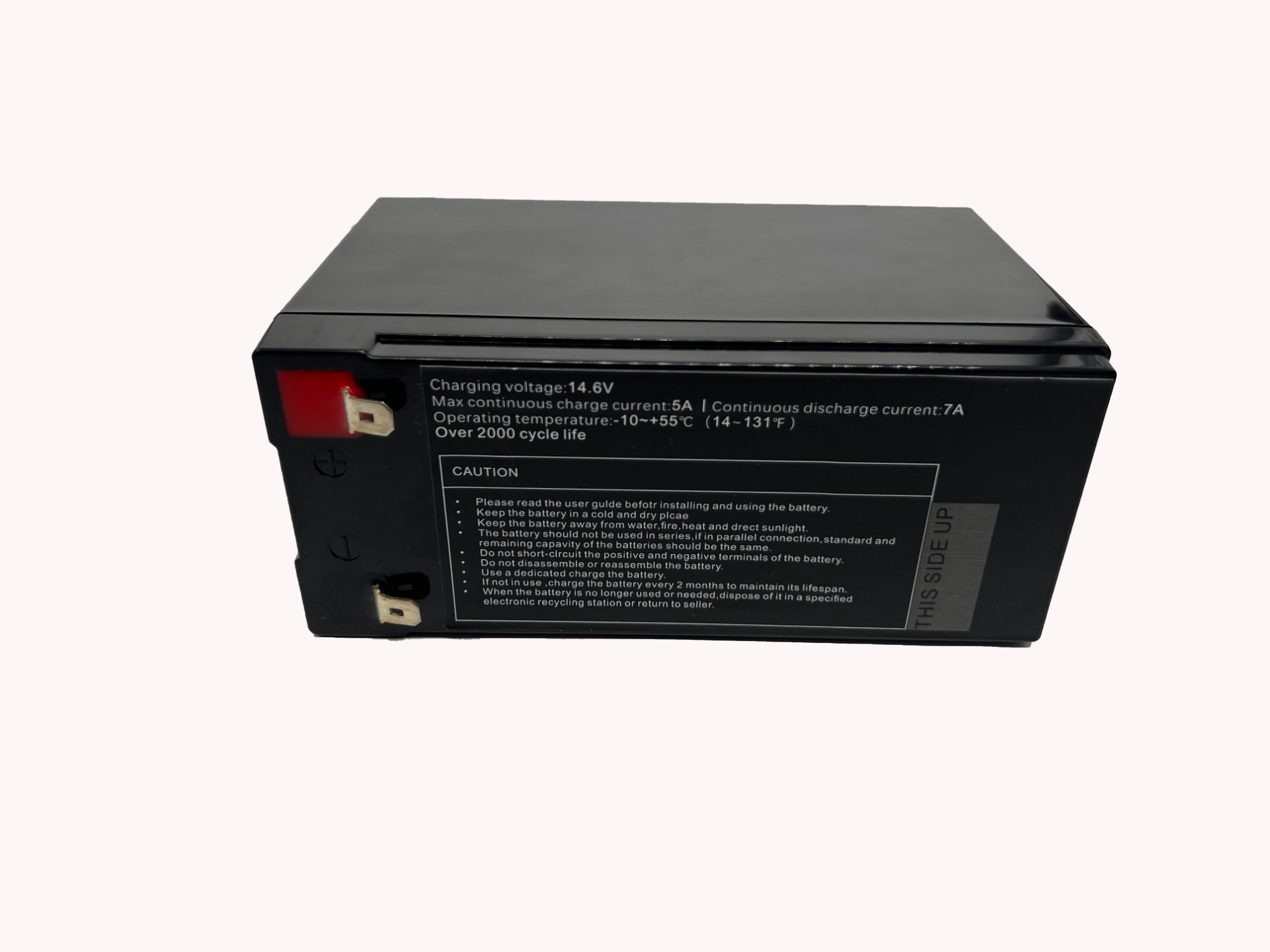

The Surlon Power 12.8V 7Ah LiFePO4 Battery provides exceptional energy storage, making it ideal for applications requiring stable and reliable power. Its compact size and lightweight design ensure easy installation and integration into various systems.
Featuring cutting-edge lithium iron phosphate technology, this battery offers a long cycle life of up to 5000 cycles and excellent thermal stability. It ensures consistent performance even under demanding conditions.
The Surlon Power 12.8V 7Ah LiFePO4 Battery is suitable for a wide range of uses, including renewable energy storage, electric vehicles, and backup power systems. Its robust construction and advanced safety features make it a reliable choice for both residential and industrial applications.

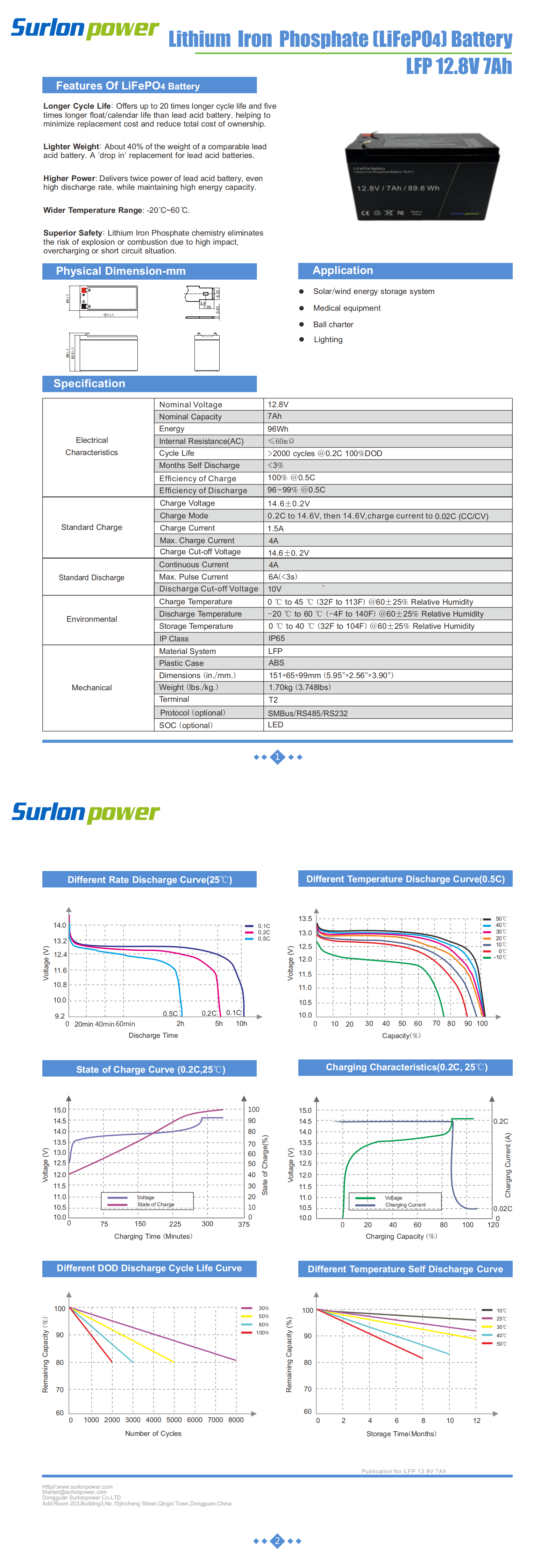

| Specification | |
|---|---|
| Electrical Characteristics | Details |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 7Ah |
| Energy | 96Wh |
| Internal Resistance (AC) | ≤60mΩ |
| Cycle Life | >2000 cycles @ 0.2C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100% @ 0.5C |
| Efficiency of Discharge | 96~99% @ 0.5C |
| Standard Charge | Details |
| Charge Voltage | 14.6 ± 0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C (CC/CV) |
| Charge Current | 1.5A |
| Max. Charge Current | 4A |
| Charge Cut-off Voltage | 14.6 ± 0.2V |
| Standard Discharge | Details |
| Continuous Current | 4A |
| Max. Pulse Current | 6A (<3s) |
| Discharge Cut-off Voltage | 10V |
| Environmental | Details |
| Charge Temperature | 0℃ to 45℃ (32°F to 113°F) @ 60 ± 25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4°F to 140°F) @ 60 ± 25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32°F to 104°F) @ 60 ± 25% Relative Humidity |
| IP Class | IP65 |
| Mechanical | Details |
| Material System | LFP |
| Plastic Case | ABS |
| Dimensions (in./mm.) | 151*65*99mm (5.95"*2.56"*3.90"inch) |
| Weight (lbs./kg.) | 1.70kg (3.74lbs) |
| Terminal | T2 |
| Protocol (optional) | SMBus/RS485/RS232 |
| SOC (optional) | LED |
High Energy Density: Provides a robust energy storage solution with a nominal capacity of 7Ah and an energy output of 96Wh.
Long Cycle Life: Designed to last over 2000 cycles at 100% Depth of Discharge (DoD), ensuring long-term reliability and cost-effectiveness.
Superior Efficiency: Offers high efficiency of charge (100% at 0.5C) and discharge (96-99% at 0.5C), maximizing energy utilization.
Robust Construction: Encased in a durable ABS plastic case with an IP65 rating, making it resistant to dust and water ingress.
Wide Operating Temperature Range: Functions efficiently in various environments, with a charge temperature range of 0℃ to 45℃ (32°F to 113°F) and a discharge temperature range of -20℃ to 60℃ (-4°F to 140°F).
Advanced Safety Features: Includes overcharge, over-discharge, and short-circuit protection, ensuring safe and reliable operation.
Lightweight and Compact: Weighs only 1.70kg (3.74 lbs) and has compact dimensions of 151*65*99mm (5.95"*2.56"*3.90"), making it easy to handle and install.
Versatile Applications: Suitable for a variety of uses, including renewable energy systems, backup power, and electric vehicles.
Easy Integration: Equipped with T2 terminals and optional SMBus/RS485/RS232 protocols for seamless integration with existing systems.
Environmentally Friendly: Utilizes lithium iron phosphate (LFP) technology, which is known for its environmental benefits and safety compared to traditional battery chemistries.
About Us: The Story of Surlon Power
Founded with a mission to innovate energy solutions, Surlon Power Technology Co., Ltd. specializes in developing high-quality Lithium Iron Phosphate (LiFePO4) batteries. Our commitment is to provide environmentally responsible and reliable power solutions tailored to various applications.
We pride ourselves on our dedicated R&D team, constantly improving product performance and reliability. Our products are certified with ISO9001, ISO14001, TS 16949, and OHSAS18001, ensuring top-notch quality and safety.
With two advanced manufacturing centers, Surlon Power has established a reputation for high-quality, cost-effective lithium batteries, praised by international and domestic clients alike. We aim to support sustainable and economically sensible power management practices worldwide.
FAQ
Who are we?
We are Surlon Power, a manufacturer specializing in lithium iron phosphate (LiFePO4) batteries.
How can we guarantee quality?
We ensure quality through rigorous quality control processes and safety certifications like ISO9001, ISO14001, TS 16949, and OHSAS18001.
What can you buy from us?
You can purchase various LiFePO4 batteries suitable for multiple applications including electric vehicles
Why should you buy from us and not from other suppliers?
Our extensive experience, advanced technology, and high-quality standards set us apart from other suppliers.
What services can we provide?
We offer OEM & ODM services, technical support, and guidance on battery usage and recycling.
For more detailed information, you can visit their FAQ page.
