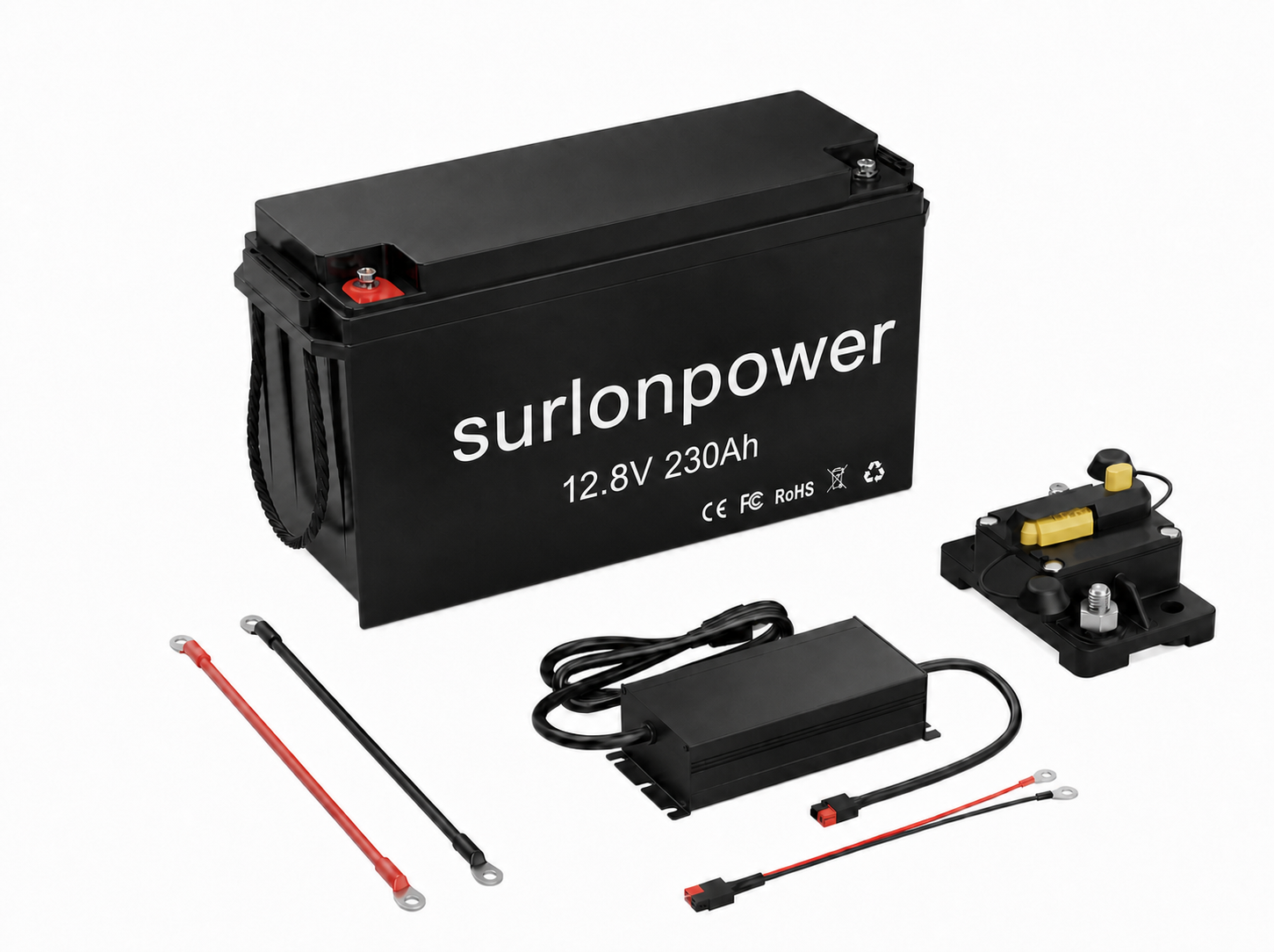

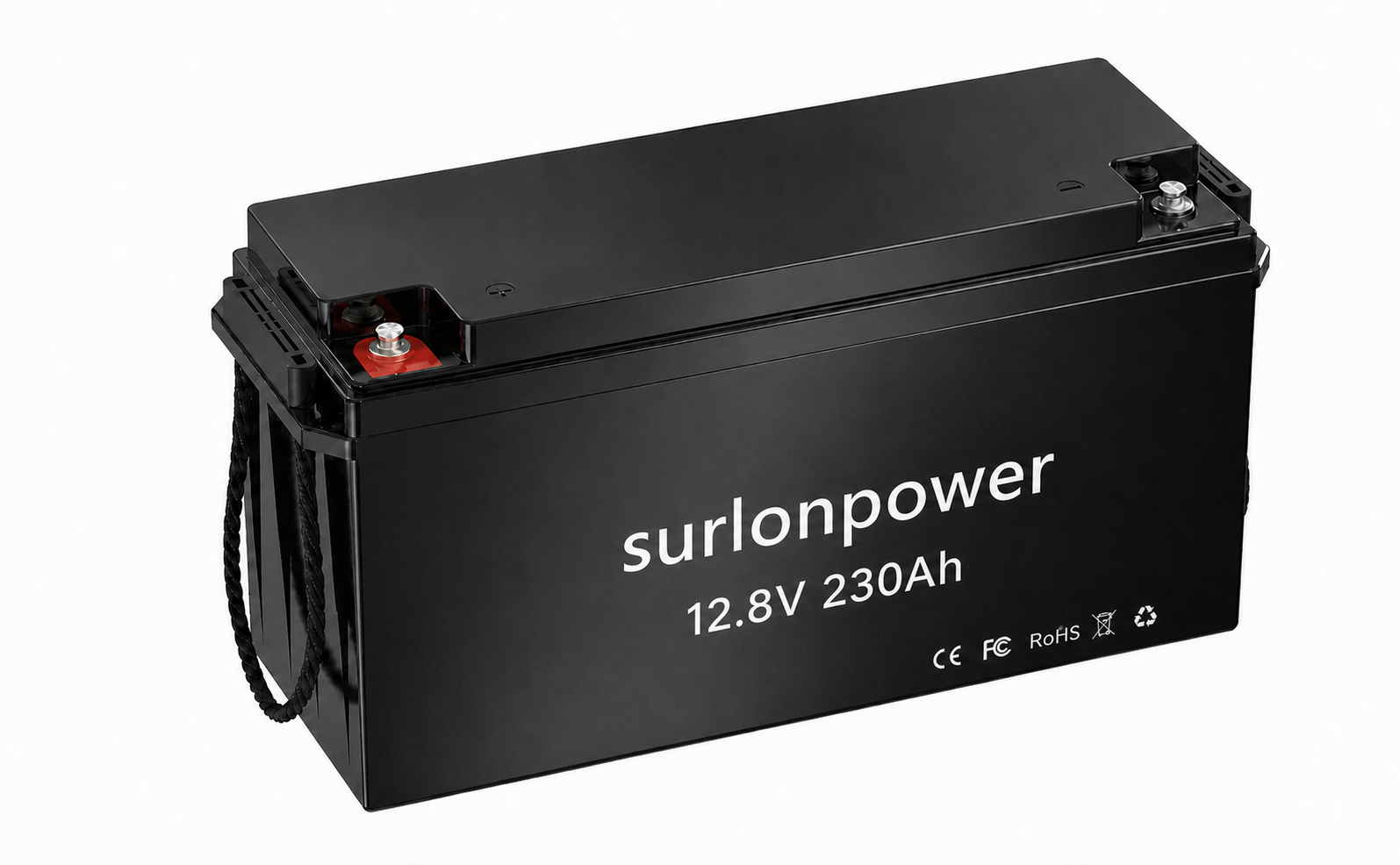

Designed for compatible RV, marine, off-grid solar, and backup-power systems, this 12.8V 230Ah deep-cycle LiFePO4 battery combines 2.94kWh of stored energy with Bluetooth monitoring and an integrated 200A BMS.
| Specification | Details |
|---|---|
| Battery chemistry | LiFePO4 |
| Nominal voltage | 12.8V |
| Rated capacity | 230Ah |
| Stored energy | 2,944Wh |
| BMS rating | 200A |
| Maximum continuous output | 2,560W |
| Charge voltage | 14.4V ± 0.2V |
| Recommended charging current | 46A |
| Dimensions | 19.02 × 6.69 × 9.45 in |
| Approximate weight | 45.98 lb |
| Protection rating | IP65 |
| Terminals | M8 bolts |
Important: This is a deep-cycle energy-storage battery and is not intended for engine-starting use.
Using the compatible mobile application, users can review state of charge, voltage, current, charge/discharge status, power, and protection alerts. App availability and supported functions should be confirmed for the target device and market.
Confirm the required voltage and capacity, charger profile, inverter demand, cable size, fuse rating, terminal polarity, available installation space, and any series or parallel configuration. Batteries used together must be compatible and correctly matched.
Send us your application, required runtime, inverter or load power, charger details, installation dimensions, connection method, expected quantity, and delivery market for compatibility review and pricing.
