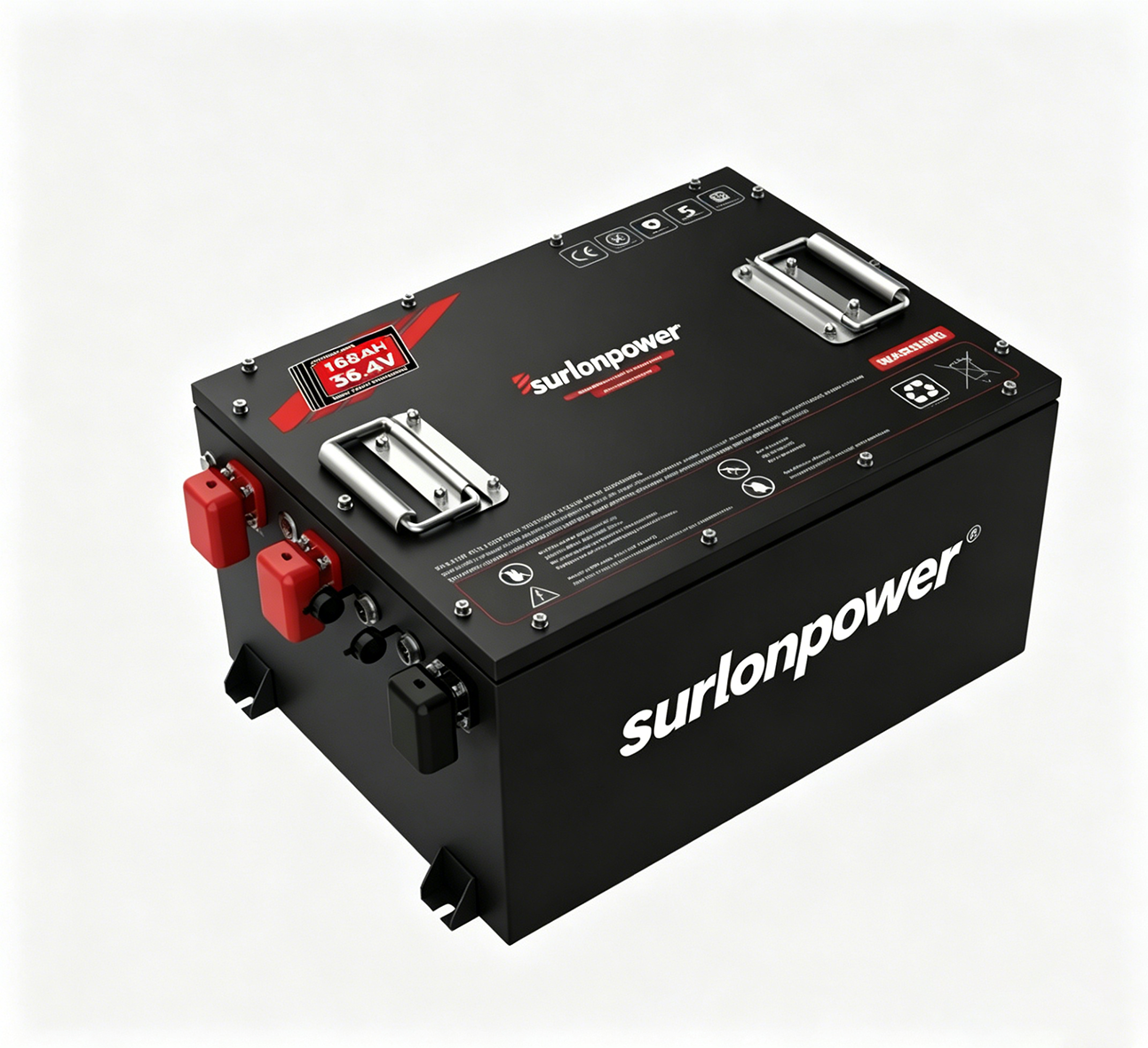

36V 168Ah Lithium Golf Cart Battery
Upgrade your golf cart with the GLF08 36V 168Ah lithium battery. Delivering 6.45kWh of power and up to 64 miles of range, this IP67-rated, maintenance-free LiFePO4 battery is a reliable drop-in replacement for lead-acid golf cart batteries. Built-in BMS protection and a 5-year warranty provide lasting confidence.
Specifications
Product Description
This lithium golf cart battery pack manufacturer delivers the Surlon Power LFP 36V 168Ah battery designed to replace traditional lead-acid batteries in 36V golf carts and similar electric vehicles. It targets fleet operators, OEMs, and distributors seeking a maintenance-free lithium ion battery golf cart solution that combines power capacity with operational safety through an integrated Battery Management System (BMS). The battery is suited for commercial and project-based procurement requiring reliable energy storage with reduced upkeep.
The battery provides a nominal capacity of 168Ah and stores 6.45kWh of energy, supporting a typical run of 48 to 64 miles per full charge. It features continuous and maximum discharge currents of 168A and 200A, respectively, and operates within wide temperature ranges. Its LiFePO4 chemistry includes a robust steel enclosure rated IP67 for dust and water resistance. The integrated BMS safeguards against overcharge, over-discharge, and temperature faults, supporting longevity with up to 5,000 charge cycles, appropriate for high-demand golf cart usage.
This lifepo4 golf cart battery fits applications involving golf course fleets, resort utility vehicles, and commercial electric carts requiring longer operating ranges and durability. Its maintenance-free design eliminates acid or water upkeep, reducing operational complexity. The dimensions and weight accommodate standard 36V golf cart compartments, making it a practical choice for OEMs and distributors evaluating lithium batteries for golf carts as replacements or upgrades for low-speed electric vehicles.
Upgrade your golf cart with the Surlon Power 36V 168Ah LiFePO4 Golf Cart Battery. Designed as a dependable replacement for conventional 36V lead-acid battery systems, this 6.45kWh lithium battery delivers longer runtime, strong power output, and maintenance-free operation for golf courses, resorts, communities, and commercial fleets.
Built with lithium iron phosphate (LiFePO4) technology and an integrated Battery Management System (BMS), the battery provides stable performance and essential protection against overcharge, over-discharge, over-temperature, and short circuits. Its durable steel enclosure and IP67 protection rating help it perform reliably in demanding outdoor environments.
As a product from an established golf cart battery manufacturer, this battery includes features relevant to bulk sourcing and OEM/ODM customization. The steel casing and IP67 rating align with outdoor commercial usage, supporting durability. The integrated BMS enhances safety compliance, an important consideration for suppliers managing inventory and distribution of lithium batteries for golf carts in varying climates and operational conditions.
Maintenance-free operation reduces service demands for fleet managers and commercial users. The battery's compatibility with standard 36V systems eases integration into existing golf carts and electric vehicle platforms. Its moderate size and weight facilitate packaging and transport logistics, valuable for golf cart lithium battery suppliers offering tailored solutions. Warranty and cycle life data provide quantifiable criteria for evaluating lifecycle costs in procurement decisions.
The GLF08 lithium golf cart battery is engineered for reliable power delivery in daily-use electric vehicles. Its stable voltage output helps support smooth acceleration and consistent performance throughout the discharge cycle.
Ideal applications include:
Use Scenarios
Golf Course and Resort Fleet Replacement
Golf courses and resorts managing electric fleets may replace lead-acid batteries with this lithium golf cart battery offering extended run times and maintenance-free operation. The integrated BMS and IP67 enclosure protect battery integrity in outdoor environments, reducing downtime and maintenance workload. Such replacements provide fleet operators with a ready-to-deploy lithium solution fitting standard 36V electric carts commonly used in these settings.
OEM/ODM Integration for Low-Speed Electric Vehicles
Manufacturers and assembly partners of low-speed electric vehicles can source this lifepo4 golf cart battery as a component within their product lines. The consistent voltage, reliable discharge currents, and compatibility with 36V systems support seamless integration. Its extended cycle life and safety protections through the embedded BMS assist project leaders in selecting durable battery packs meeting operational and regulatory expectations.
Compared with traditional lead-acid batteries, LiFePO4 golf cart batteries offer a longer cycle life, faster charging capability, lower maintenance requirements, and improved energy efficiency. The GLF08 combines these advantages with robust construction and intelligent battery protection to reduce downtime and lower the total cost of ownership over the life of the battery.
| Specification | Details |
|---|---|
| Model | GLF08 |
| System Voltage | 36V |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 168Ah |
| Stored Energy | 6.45kWh |
| Typical Range per Full Charge | 48–64 miles (77–103 km) |
| Continuous Charge Current | 80A |
| Continuous Discharge Current | 168A |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 200A |
| Dimensions (L × W × H) | 27.17 × 13.39 × 10.04 in. / 690 × 340 × 255 mm |
| Weight | 141 lbs. / 64 kg |
| Casing Material | Steel |
| IP Rating | IP67 |
| Charge Temperature | 32°F to 131°F / 0°C to 55°C |
| Discharge Temperature | -4°F to 131°F / -20°C to 55°C |
| Storage Temperature, up to 1 Month | -4°F to 131°F / -20°C to 55°C |
| Storage Temperature, up to 1 Year | 32°F to 95°F / 0°C to 35°C |
| Cycle Life | Up to 5,000 cycles* |
*Cycle life varies with depth of discharge, charging practices, temperature, load, and other operating conditions.
A 36V 168Ah lithium battery provides the capacity and output needed for demanding golf cart operations. It can help fleet owners and individual users reduce maintenance time, avoid the inconvenience of lead-acid battery watering, and achieve longer operating range with dependable power delivery.
For best results, confirm battery compartment dimensions, voltage compatibility, cable connections, charger compatibility, and installation requirements before purchase.
Surlon Power Technology Co., Ltd. specializes in the research, development, and manufacturing of LiFePO4 battery solutions. We provide safe, reliable, and environmentally responsible lithium battery products for customers worldwide, with OEM and ODM support available for qualified projects.
Is this battery compatible with my 36V golf cart?
This battery is designed for compatible 36V golf cart systems. Before ordering, verify the available installation space, voltage requirements, cable connections, vehicle controller requirements, and charger compatibility.
How far can a 36V 168Ah golf cart battery travel?
The typical range is 48–64 miles (77–103 km) per full charge. Actual range depends on the golf cart model, payload, terrain, tire condition, speed, battery condition, and ambient temperature.
Does the battery require regular maintenance?
No. Unlike lead-acid batteries, this LiFePO4 battery does not require water refilling or acid-deposit cleaning. Periodic inspection of cables, mounting hardware, and charging equipment is recommended.
Is the battery waterproof?
The enclosure is rated IP67, providing strong protection against dust ingress and temporary water immersion. Do not submerge the battery beyond the conditions covered by its IP rating or expose it to improper installation conditions.
What safety protection is included?
The integrated BMS helps protect the battery from overcharge, over-discharge, short circuits, and abnormal temperature conditions.
Can Surlon Power provide OEM or ODM service?
Yes. OEM and ODM solutions are available for compatible lithium battery projects. Contact our team to discuss voltage, capacity, dimensions, connectors, communication protocols, and application requirements.
Is the Surlon Power LFP lithium golf cart battery compatible with all 36V golf carts?
Our lithium golf cart battery is designed for 36V systems but requires you to verify your cart’s dimensions, voltage specifications, and connections for compatibility. We recommend confirming charger and controller compatibility to ensure optimal performance with our battery.
Can you customize the lithium battery pack for specific golf cart models?
Yes, as a trusted golf cart battery manufacturer, we offer custom battery solutions tailored to your requirements. Contact us with your specifications to discuss a custom golf cart battery pack designed to meet your needs.
What maintenance is required for your lifepo4 golf cart battery?
Our lifepo4 golf cart battery requires no water or acid refilling. Routine checks on wiring connections and charging hardware are advised to maintain optimal function, ensuring a maintenance-free experience unlike lead-acid alternatives.
How do you handle shipping and installation support for your lithium batteries?
We provide secure packaging for our batteries and guidance on safe handling during transport. Our team offers technical support to assist you with installation, helping you integrate our lithium ion battery golf cart safely and effectively.
Looking for a reliable 36V lithium golf cart battery for your fleet or project? Contact Surlon Power today for product information, technical support, and a customized quotation.
